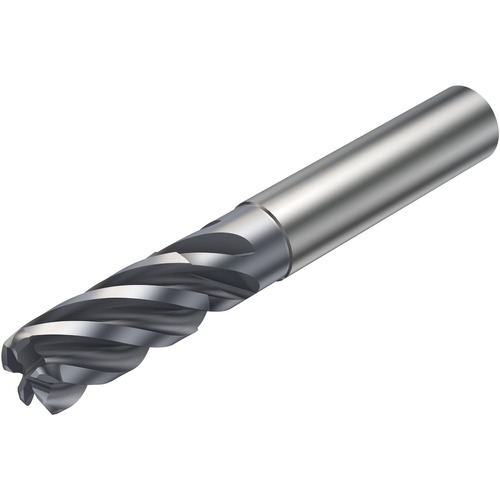

2F342-1200-200-PC 1730 COROMILL PLURA
SQ End Mill; 12 mm Dia. × 36 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 5 FL ; Carbide ; AlCrN
| Cutting Diameter (DC) | 12 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 36 mm | Usable Length (LU) | 36 mm |
| Overall Length (OAL) | 83 mm | Applicable Material | Steel | Cast Iron |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 2 mm |
| Coating | AlCrN | Length Group | 3D |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|38 Degrees | Decimal Equivalent | 0.4724″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.278
