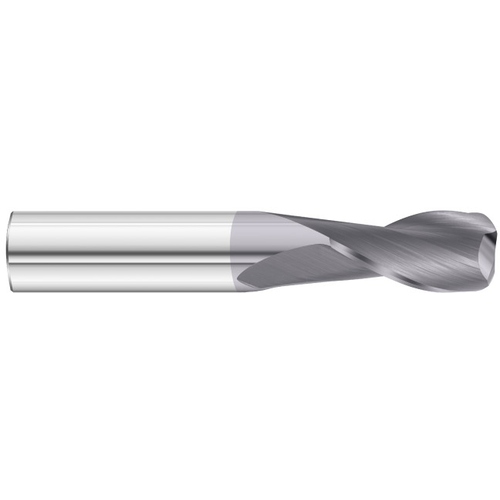

Corner Radius End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 3215
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 1/8″ RE ; 2 FL ; 1-1/2″ LBS ; Carbide ; AlTiN ; Series 3215
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 1/8″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 3215 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.8
