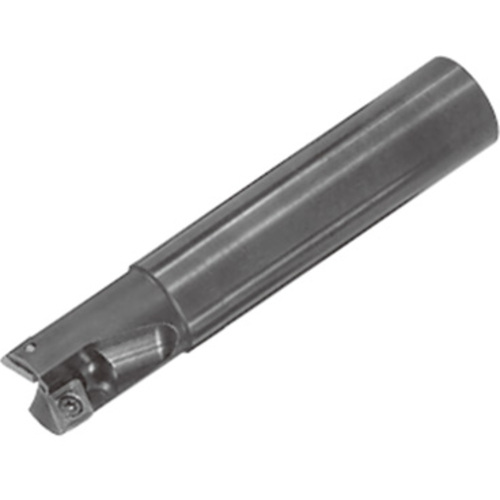

ESD10100RSU
Indexable End Mill; 1″ Dia. × 0.354″ LOC × 32 mm Shank Dia. × 130 mm OAL ; 4 FL ; Round Shank ; 90 Degrees

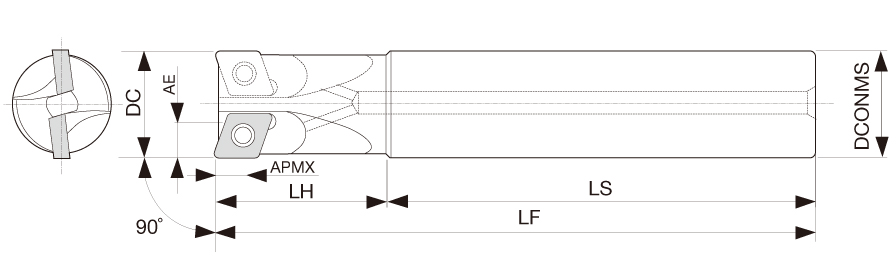

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 1.56″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.354″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Hole Enlarging | Plunging | Pocket Milling | Ramping | Shoulder Milling | Side Milling | Slot Milling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | GDMT10H3PDPR-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1″ |
Product Features
| Family Description | Multi purpose square endmills | Country of Origin | Japan |
Shipping Info
Package Weight
0.953
