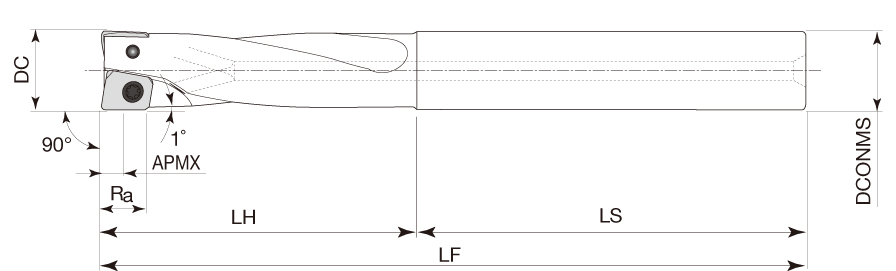

EVH06R039U0050-02
| Cutting Diameter (DC/DCX) | 0.394″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 0.394″ | Functional Length (LF) | 1.57″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.12″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Drilling | Hole Enlarging | Plunging | Pocket Milling | Ramping | Shoulder Milling | Side Milling | Slot Milling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | XVGT06H205EC-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 0.394″ |
Product Features
| Family Description | Multi purpose endmills with center edge in small diameter | Country of Origin | Japan |
Shipping Info
Package Weight
0.2
