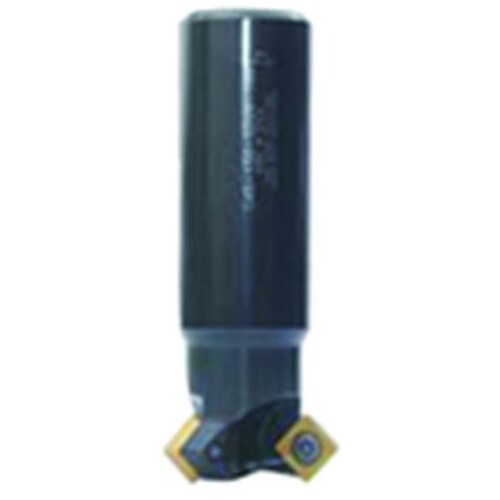

.325 Dia × 5/8″ SH-45° Chamfer Mill Cutter
Indexable End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 3″ OAL ; 1 FL
| Cutting Diameter (DC/DCX) | 5/8″ | Master Insert Identification (MIID) | SPMT 060304 |
| Cutting Item Count (CICT) | 1 | Tool Type | Chamfer Mill |
| Depth of Cut Maximum (APMX) | 3/4″ | Flute Count (NOF) | 1 |
| Overall Length (OAL) | 3″ | Angle | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Model Number | C45-062-SP06-062 |
Product Features
| Remarks | •Cutting Rake - 15° for 15° Positive Square SDGW & SPHX Inserts | Country of Origin | USA |
Shipping Info
Package Width
1.20000
Package Weight
0.23
LocalField3
B65
