3/4X5 .030R 3FL GEM+ RGR Alternate Manufacture # 33436

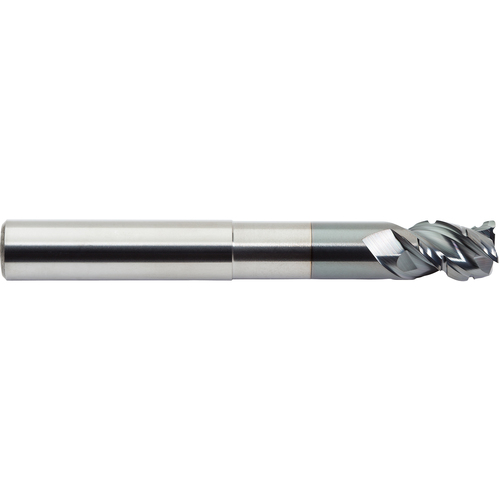

SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 3 FL ; Carbide ; DLC ; Series 334
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 5″ | Neck Length (LN) | 3″ |
| Cutting Edge Material | Carbide | Tool Type | Single-End|High Performance |
| Coating | DLC | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 | Series/List # | 334 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| End Shape | Corner Radius |
Product Features
| Family Description | Alternate Manufacture # 33436 | Country of Origin | USA |
Shipping Info
Package Weight
1.016
