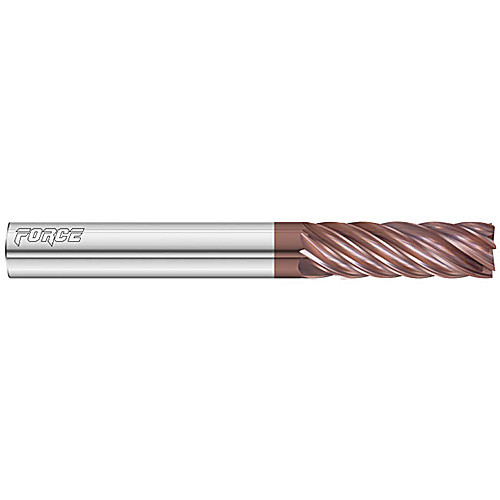

Center Cutting End Mill; 16 mm Dia. × 48 mm LOC × 16 mm Shank Dia. × 125 mm OAL ; 9 FL ; Carbide ; FC20
SQ End Mill; 16 mm Dia. × 48 mm LOC × 16 mm Shank Dia. × 125 mm OAL ; 9 FL ; 48 mm LBS ; Carbide ; FC20 ; Series 3600
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | Variable |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Center Cutting |
| Depth of Cut Maximum (APMX) | 48 mm | Usable Length (LU) | 48 mm |
| Overall Length (OAL) | 125 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.6299″ |
| Coating | FC20 | Series/List # | 3600 |
| Flute Count (NOF) | 9 |
Product Features
| Remarks | •Cutter diameter tolerance: +.0/-.002•Shank diameter tolerance: h6•Material used in: steels, stainless, high temp alloys, and Titanium•Center cutting | Country of Origin | USA |
Shipping Info
Package Weight
0.69
