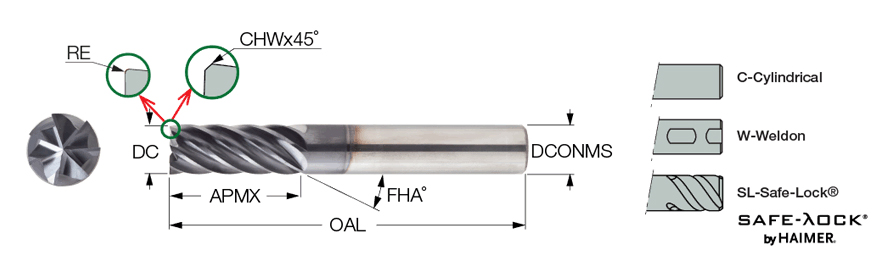

| Cutting Diameter (DC) | 12 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 72 mm | Grade | IC902 |

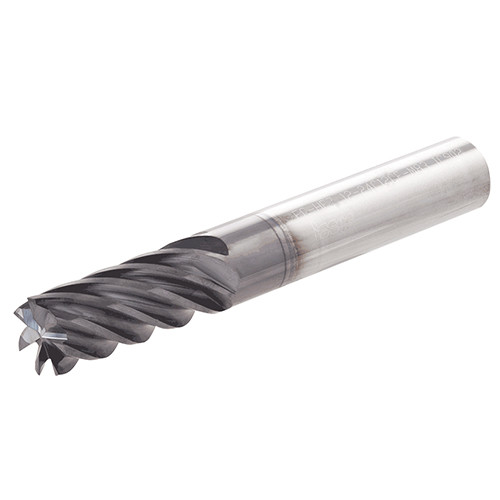

| Overall Length (OAL) | 140 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Count (NOF) | 7 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees | Measurement Type | Metric |
| Shank Type | SL | Connection Code Machine Side (CCMS) | Cylindrical |
| End Shape | Chamfer | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Shouldering | |
Product Features
| Family Description | 7 flute endmills with different helix and variable pitch for CHATTERFREE high speed / trochoidal milling and finishing operations. | Country of Origin | Israel |
| Remarks | Enables processing at a radial width of cut (AE) of up to 0.10xDC | ItemRemark | Safe-Lock® by Haimer, helical grooves that prevent pull-out |
Shipping Info
Package Weight
1.72
