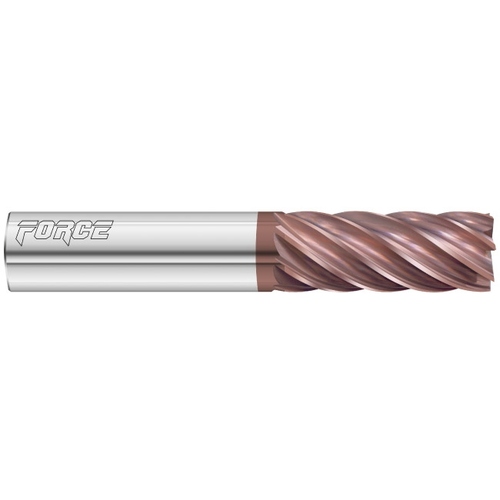

Square End Mill; 1″ Dia. × 1″ Shank Dia. × 4″ OAL ; 9 FL ; Carbide ; FC20
SQ End Mill; 1″ Dia. × 1-1/4″ LOC × 1″ Shank Dia. × 4″ OAL ; 9 FL ; Carbide ; FC20 ; Series 3600
| Cutting Diameter (DC) | 1″ | Flute Helix Angle (FHA) | Variable |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1-1/4″ | End Shape | Square |
| Overall Length (OAL) | 4″ | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | FC20 | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 9 | Series/List # | 3600 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.32
