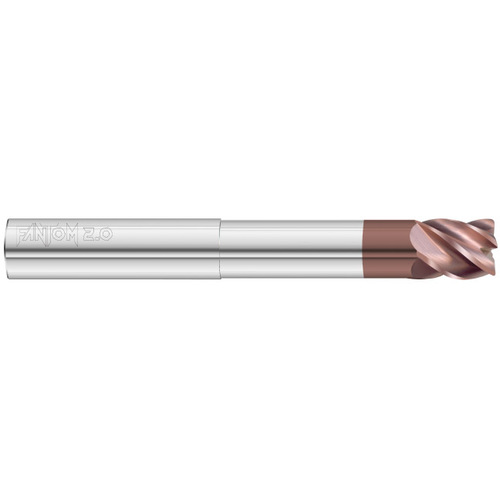

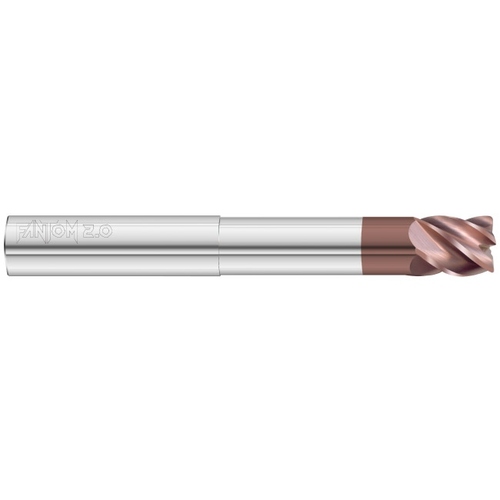

Corner Radius End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 5 FL ; Carbide ; FC20 ; Series 3412
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 0.03″ RE ; 5 FL ; 4-1/8″ LBS ; Carbide ; FC20 ; Series 3412
| Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1″ | Usable Length (LU) | 4-1/8″ |
| Overall Length (OAL) | 6″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Tool Type | Single-End |
| Coating | FC20 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | 3412 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.08
