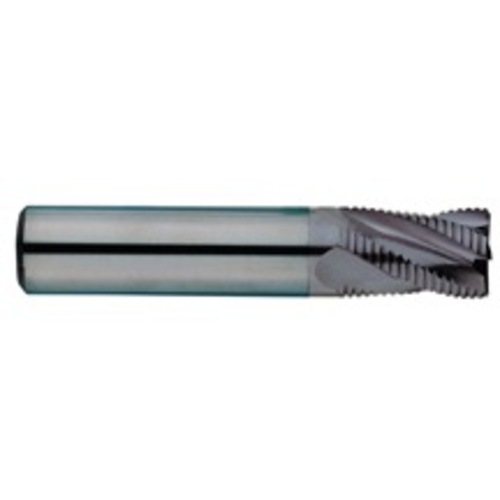

1/2″ DIA-3″ OAL-TIALN CBD
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0″ RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1″ | Application | Roughing |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Length Group | Long Reach |
| Coating | AlTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
Product Features
| Remarks | •Multi-Flute 45 Helix Roughing End Mill with TiAIN Coating •Suitable for low hardened material (under HRc45), stainless steel •Excellent performance in slotting cutting condition •Shank tolerance: 0 -.0003 | Country of Origin | S.Korea |
Shipping Info
Package Length
3.60000
Package Width
.70000
Package Weight
0.256
LocalField3
A340
