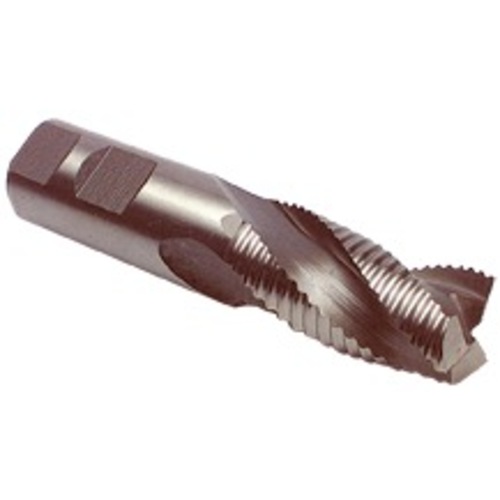

1″ Dia-6-1/2″ OAL-TiN M42-Roughing SE EM-3 FL
SQ End Mill; 1″ Dia. × 4″ LOC × 1″ Shank Dia. × 6-1/2″ OAL ; 3 FL ; HSSCo ; TiN
| Cutting Diameter (DC) | 1″ | Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 4″ |
| Depth of Cut Maximum (APMX) | 4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 6-1/2″ | Application | Roughing |
| Cutting Edge Material | HSSCo | Length Group | Long |
| Coating | TiN | Decimal Equivalent | 1″ |
Product Features
| Remarks | •3-Flute M–42 Cobalt Roughing End Mills For Aluminum •For rapid stock removal in aluminum and other alloys •The three flute design improves chip flow and prevents flutes from loading up •TiN coating improves tool life and allows elevated feeds and speeds •TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.182
LocalField3
A253
