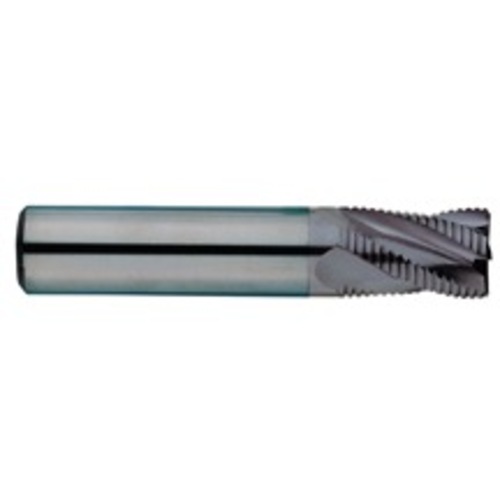

3/8″ Dia-2-1/2″ OAL-TiAlN CBD-Roughing HP EM-3 FL
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 0″ RE ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/8″ | Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 7/8″ | End Shape | Square |
| Overall Length (OAL) | 2-1/2″ | Application | Roughing |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0″ |
| Coating | AlTiN | Length Group | Long Reach |
Product Features
| Remarks | •Multi-Flute 45 Helix Roughing End Mill with TiAIN Coating •Suitable for low hardened material (under HRc45), stainless steel •Excellent performance in slotting cutting condition •Shank tolerance: 0 -.0003 | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.14
