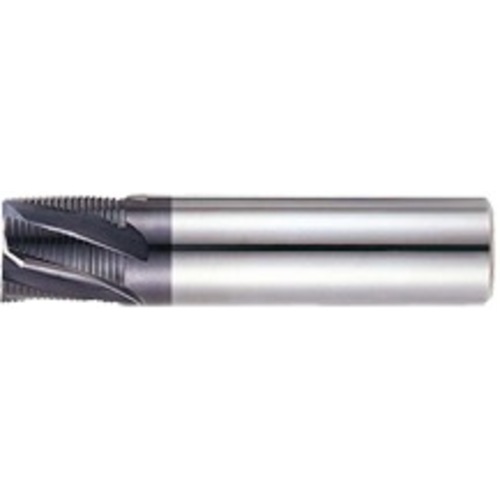

3/4″ Dia-3-3/4″ OAL-TiAlN CBD-Roughing HP EM-4 FL
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 3-3/4″ OAL ; 0″ RE ; 4 FL ; 1″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1″ | Usable Length (LU) | 1″ |
| Overall Length (OAL) | 3-3/4″ | Application | Roughing |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0″ |
| Coating | AlTiN | Length Group | Stub |
| Flute Count (NOF) | 4 |
Product Features
| Remarks | •Multi-Flute 20 Helix Stub Length Roughing End Mill with TiAIN Coating | Country of Origin | S.Korea |
Shipping Info
Package Length
4.50000
Package Width
.90000
Package Height
.90000
Package Weight
0.762
LocalField3
A344
