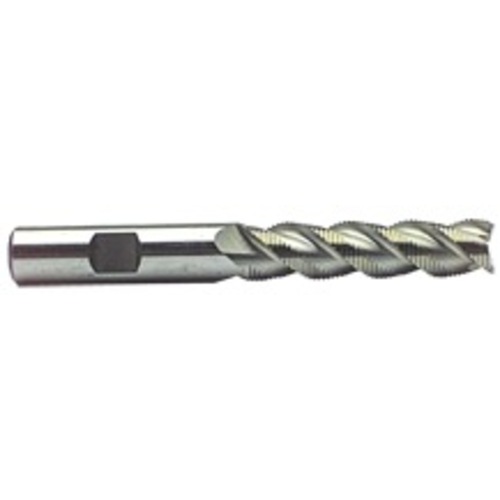

3/4″ Dia-3-3/4″ OAL-Uncoat M42-Roughing SE EM-3 FL
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 3-3/4″ OAL ; 3 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 3/4″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Usable Length (LU) | 1-5/8″ |
| Overall Length (OAL) | 3-3/4″ | Application | Roughing |
| Cutting Edge Material | HSSCo | Length Group | Standard |
| Coating | Uncoated | Flute Type | Fine |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.75″ |
Product Features
| Remarks | •M-42 Cobalt - Fine Tooth–45° High Helix–3 Flute •Center Cutting Roughing End Mills •Use for milling operations in hard materials •3-flute design and high shear angle aids in chip removal and produces better finishes than coarse tooth design | Country of Origin | S.Korea |
Shipping Info
Package Length
4.20000
Package Width
.90000
Package Height
.90000
Package Weight
0.4
LocalField3
A252
