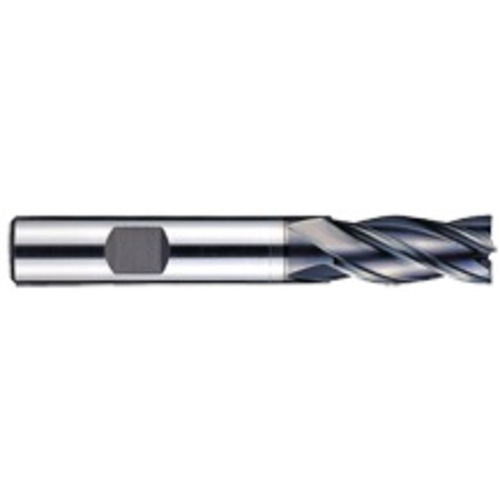

1/4 Dia. × 5/8 LOC × 2-7/16 OAL 4 Flute Cobalt S/E HP End Mill-Alcrona
SQ End Mill; 1/4″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-7/16″ OAL ; 4 FL ; 5/8″ LBS ; HSSCo ; AlCrN
| Cutting Diameter (DC) | 1/4″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Single-End|High Performance |
| Overall Length (OAL) | 2-7/16″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.25″ |
| Coating | AlCrN |
Product Features
| Remarks | •S-Kut 4-Flute, Single End, Alcrona Coated Cobalt End Mills •Excellent at dry milling with high speed cutting •Improved edge performance & wear resistance •Fine surface finish •Excellent results up to HRC 50–53 Hardness •Alcrona coated has oxidation resistance up to 1100°C | Country of Origin | S.Korea |
Shipping Info
Package Length
2.70000
Package Width
.50000
Package Weight
0.1
LocalField3
A245
