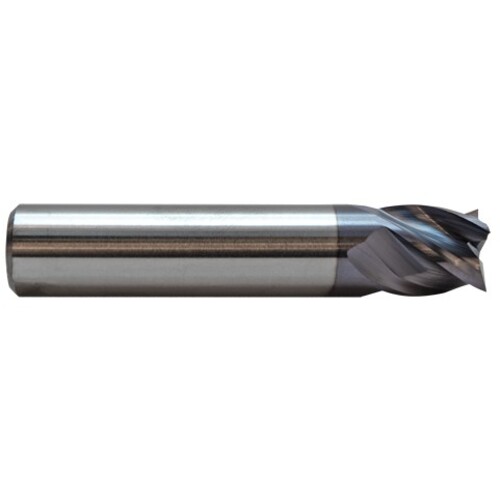

7/32TuffCut XR 4 Flute Carbide End Mill,.015R Alternate Manufacture # 17739
SQ End Mill; 7/32″ Dia. × 7/16″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.015″ RE ; 4 FL ; 7/16″ LBS ; Carbide ; AlTiN ; Series 177
| Cutting Diameter (DC) | 7/32″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 7/16″ | Usable Length (LU) | 7/16″ |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.21875″ |
| Coating | AlTiN | Series/List # | 177 |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | Alternate Manufacture # 17739 | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
.31000
Package Weight
0.056
LocalField3
A312
