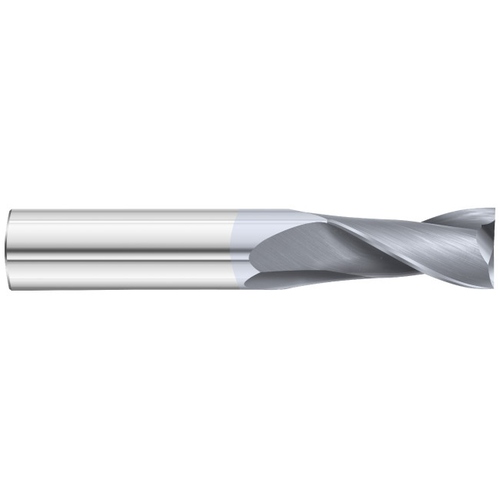

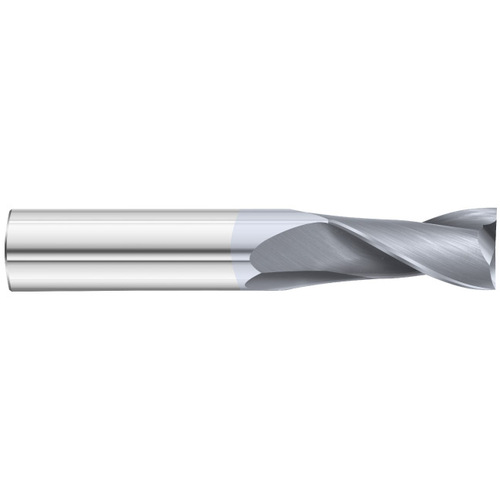

Square End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; TiCN ; Series 3215
SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 2 FL ; 1-1/2″ LBS ; Carbide ; TiCN ; Series 3215
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Usable Length (LU) | 1-1/2″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | TiCN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 3215 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
1.38
