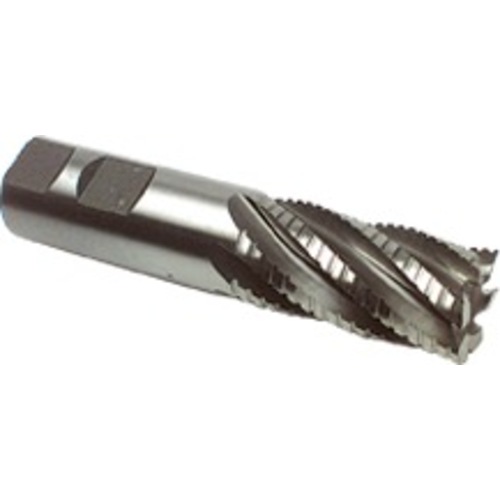

3/4″ Dia-3-3/4″ OAL-TiCN M42-Roughing & Finishing SE EM 4 FL
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 3/4″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 1-5/8″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Application | Roughing | Finishing |
| Overall Length (OAL) | 3-3/4″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.75″ |
| Coating | TiCN |
Product Features
| Remarks | •M-42 Cobalt Roughing and Finishing End Mills •Reduce chatter dramatically •For maximum performance, reduce feeds by 10% •Easy regrinding, longer tool life, less tool deflection •TiN coating improves tool life and allows elevated feeds and speeds •TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials | Country of Origin | S.Korea |
Shipping Info
Package Length
4.10000
Package Width
.90000
Package Height
.90000
Package Weight
0.3
LocalField3
A248
