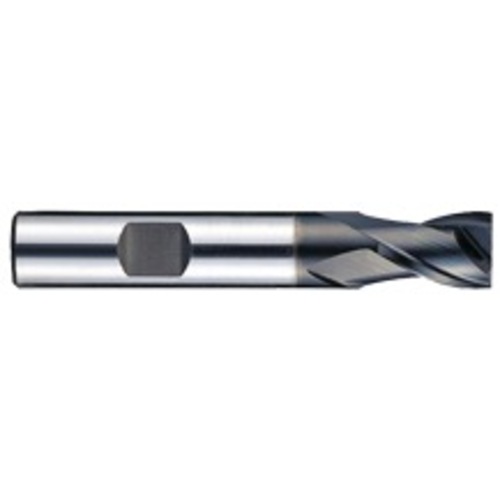

7/16 Dia. × 13/16 LOC × 2-1/2 OAL 2 Flute Cobalt S/E HP End Mill-Alcrona
SQ End Mill; 7/16″ Dia. × 13/16″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; 13/16″ LBS ; HSSCo ; AlCrN
| Cutting Diameter (DC) | 7/16″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 13/16″ |
| Depth of Cut Maximum (APMX) | 13/16″ | Tool Type | Single-End|High Performance |
| Overall Length (OAL) | 2-1/2″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.4375″ |
| Coating | AlCrN |
Product Features
| Remarks | •S-Kut 2-Flute, Single End, Alcrona Coated Cobalt End Mills •Excellent at dry milling with high speed cutting •Improved edge performance & wear resistance •Fine surface finish •Excellent results up to HRC 50–53 Hardness •Alcrona coated has oxidation resistance up to 1100°C | Country of Origin | S.Korea |
Shipping Info
Package Length
2.90000
Package Width
.50000
Package Weight
0.05
LocalField3
A245
