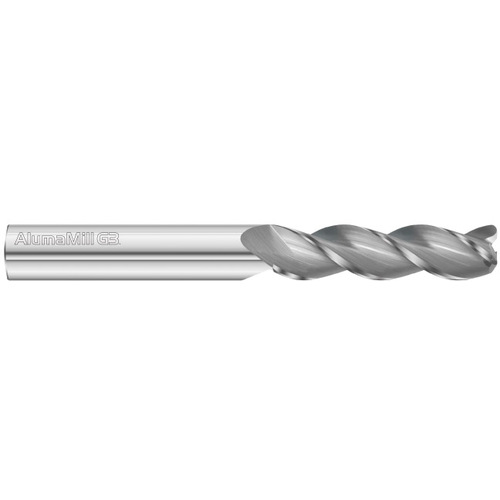

Corner Radius End Mill; 14 mm Dia. × 57 mm LOC × 14 mm Shank Dia. × 125 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833
SQ End Mill; 14 mm Dia. × 57 mm LOC × 14 mm Shank Dia. × 125 mm OAL ; 1.5 mm RE ; 3 FL ; 57 mm LBS ; Carbide ; Uncoated ; Series 3833
| Cutting Diameter (DC) | 14 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Usable Length (LU) | 57 mm |
| Depth of Cut Maximum (APMX) | 57 mm | Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 125 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Extra Long |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.5512″ |
| Flute Helix Angle (FHA) | 37.5 Degrees | Series/List # | 3833 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.49
