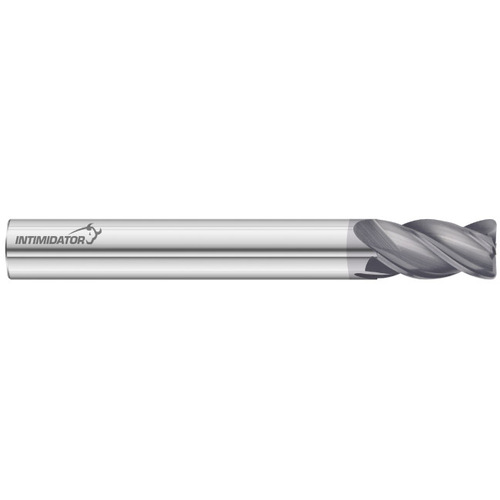

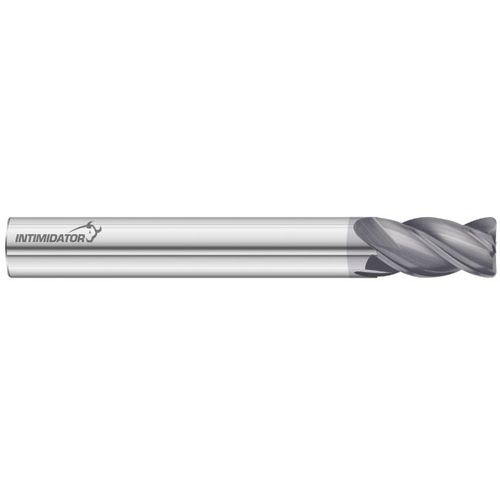

Corner Radius End Mill; 20 mm Dia. × 30 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
SQ End Mill; 20 mm Dia. × 30 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 2 mm RE ; 4 FL ; Carbide ; FC18 ; Series 3000
| Cutting Diameter (DC) | 20 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 30 mm | Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 100 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | FC18 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.7874″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3000 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.785
