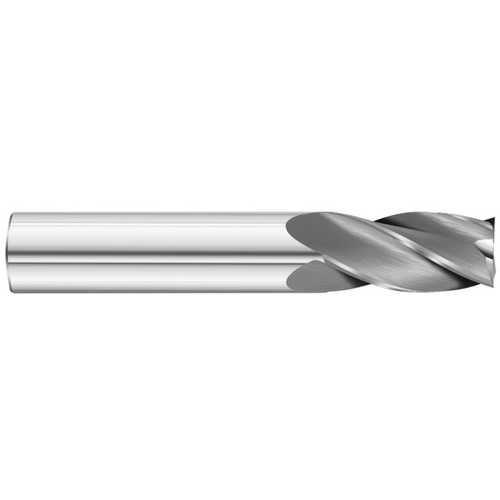

Square End Mill; 1-1/2″ Dia. × 2″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 3200
SQ End Mill; 1-1/2″ Dia. × 2″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 3200
| Cutting Diameter (DC) | 1-1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 2″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 4-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Decimal Equivalent | 1.5″ |
| Flute Count (NOF) | 4 | Series/List # | 3200 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
2.75
