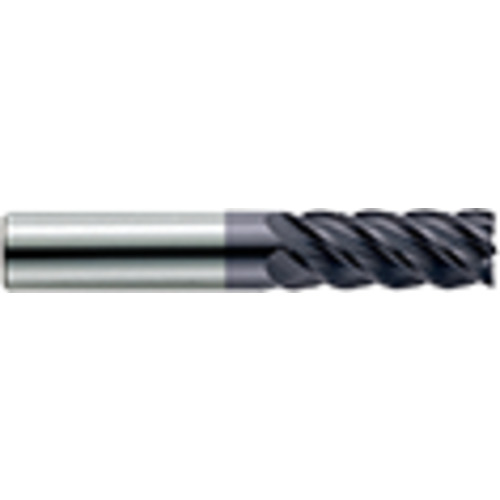

3mm × 3mm × 8mm × 38mm OAL 5 Flute Single End Square End Mill-AlTiN-45 Deg Helix
SQ End Mill; 3 mm Dia. × 8 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3 mm | Flute Count (NOF) | 5 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Depth of Cut Maximum (APMX) | 8 mm | Shank Type | Round |
| Overall Length (OAL) | 38 mm | End Shape | Square |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Decimal Equivalent | 0.1181″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
