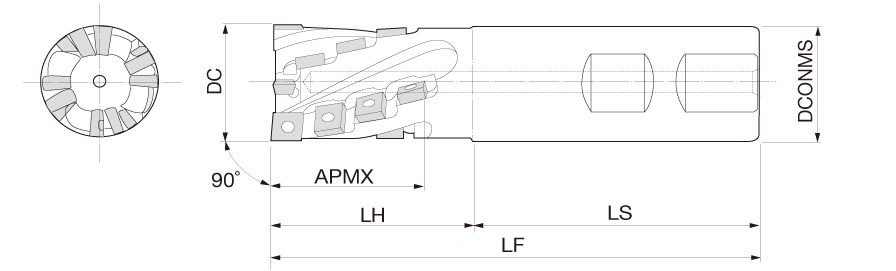

ELP09250R-U
| Application | | Deep Shoulder Milling | Shoulder Milling | Side Milling | Slot Milling | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 22 | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 2.677″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 6.797″ | Tool Type | 90 Extended flute endmills |
| Cutting Length | 1.72″ |
Product Features
| Family Description | Square shoulder endmills with long cutting edge for roughing operation | Country of Origin | Japan |
Shipping Info
Package Weight
6.615
