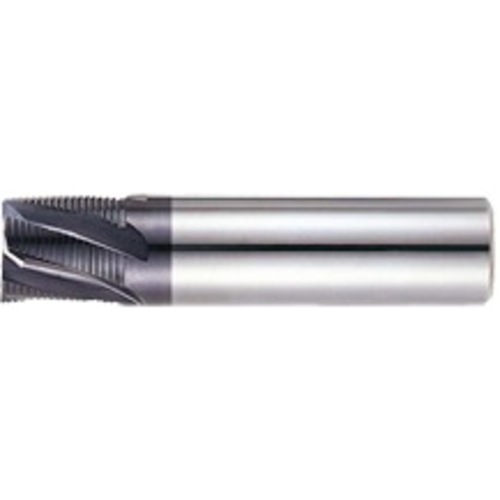

1/4″ Dia-2-1/8″ OAL-TiAlN CBD-Roughing HP EM-3 FL
SQ End Mill; 1/4″ Dia. × 5/16″ LOC × 1/4″ Shank Dia. × 2-1/8″ OAL ; 0″ RE ; 3 FL ; 5/16″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 5/16″ | Usable Length (LU) | 5/16″ |
| Overall Length (OAL) | 2-1/8″ | Application | Roughing |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0″ |
| Coating | AlTiN | Length Group | Stub |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •Multi-Flute 20 Helix Stub Length Roughing End Mill with TiAIN Coating | Country of Origin | S.Korea |
Shipping Info
Package Length
2.70000
Package Width
.50000
Package Weight
0.05
LocalField3
A344
