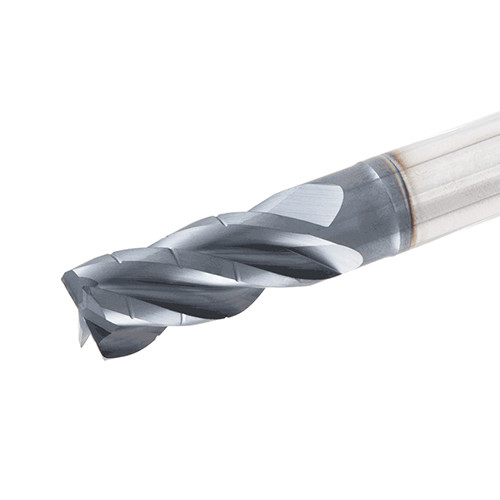

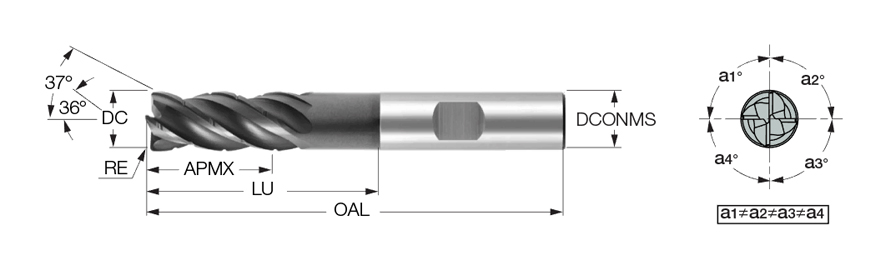

ECP-H4L 12-26/50W12CFR.5 IC900
| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 26 mm | Grade | IC900 |
| Overall Length (OAL) | 95 mm | Neck Diameter (DN) | 11.7 mm |
| Cutting Edge Material | Carbide | Body Half Taper Angle (BHTA) | 15 Degrees |
| Coating | AlTiN | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 50 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | CHATTERFREE 4 flute solid carbide roughing endmills with 36-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys. | Country of Origin | Italy |
Shipping Info
Package Weight
0.306
