TEFS060B44-14C06-57C GH730

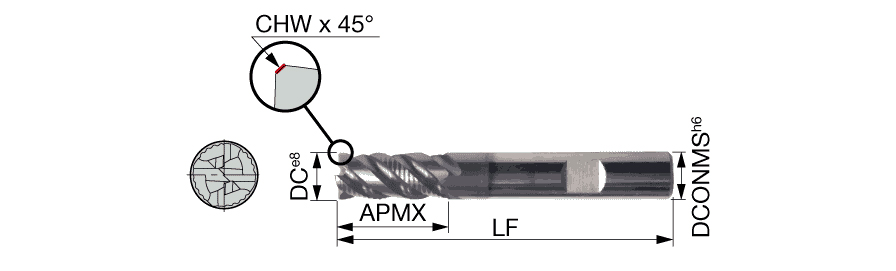

Chamfer End Mill; 6 mm Dia. × 14 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; TiCNO
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | Stainless Steel | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Finishing | Roughing | Shoulder Milling |
| Depth of Cut Maximum (APMX) | 14 mm | Corner Chamfer Width (CHW) | 0.25 mm |
| Overall Length (OAL) | 57 mm | Grade | GH730 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiCNO | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.035″ |
| End Shape | Chamfer | Measurement Type | Metric |
Product Features
| Family Description | 4 flute endmill, 45 deg helix angle, roughing and finishing combination type | Country of Origin | Israel |
Shipping Info
Package Weight
0.8
