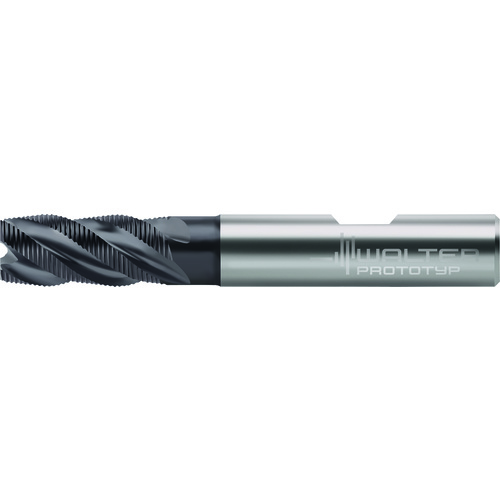

MC319-18.0W4BC-WK40TF EM
SQ End Mill; 18 mm Dia. × 32 mm LOC × 18 mm Shank Dia. × 92 mm OAL ; 4 FL ; Carbide ; TiAlN ; Series MC319
| Cutting Diameter (DC) | 18 mm | Usable Length (LU) | 42 mm |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 32 mm | Grade | WK40TF |
| Overall Length (OAL) | 92 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiAlN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MC319 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.4 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
