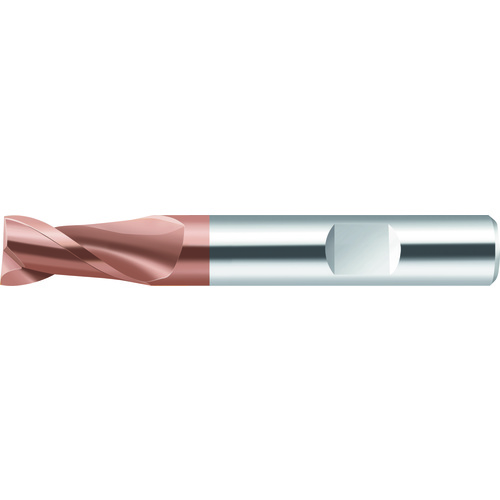

MC232.15.9W2D-WJ30ED EM
SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; Carbide ; AlTiCrN ; Series MC232
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Grade | WJ30ED |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Square Endmill |
| Overall Length (OAL) | 3-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HB |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | MC232 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.005906″ |
| Usable Length (LU) | 1″ |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.046
