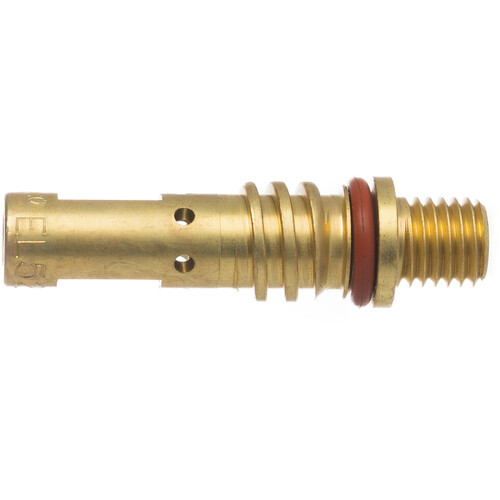

Tweco 2.229″ 14 Series Gas Diffuser

‹ ›

Tweco 2.229″ 14 Series Gas Diffuser

Item # 363434A

Brand: Esab

MFG #: 15601106

Legacy Part #: ES0215601106

Trade Name: Tweco

UOM: EA

Quantity Available

loading...

Type

Gas Diffuser

For Use With

Used in light to medium duty welding application up to 350 Amp

Product Features

Remarks

Easy identification - part no rolled stamped on the outside surface
Designed to be used with course thread nozzle assemblies
Gas diffuser provides the OD course threads so that the nozzle assembly can attach to the conductor tube
Gas diffuser has a silicon o-ring to seal against the nozzle assembly
Machined from 360 brass alloy bar stock to ensure consistent dimensional stability
Recessed Tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
Flush tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths, this brings the tip closer to the work piece
Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint
However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace

Country of Origin

Mexico

Shipping Info

Package Weight

0
