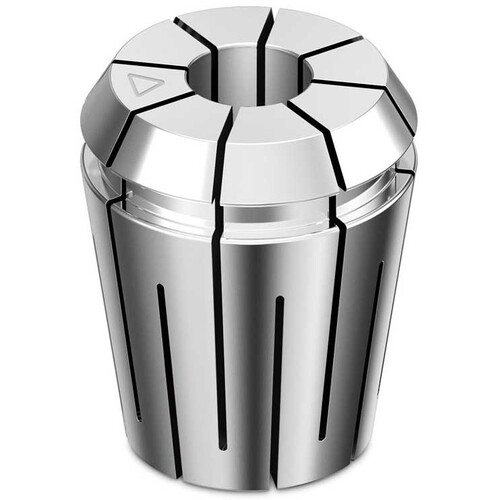

ER25-DM 7/16″ Sealed Collet
ER Collet; 7/16″ Size ; Metallic sealed
Additional Tariff Surcharge of 5 %
| Connection Diameter Workpiece Side (DCONWS) | 7/16″ | Style | Metallic sealed |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.433″ | Measurement Type | Inch |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.472″ | Diameter Range | 7/16″ - 0.4178″ |
| Shank Size (SS) | ER25 | Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Remarks | •TIR of 0.0002″ or better guaranteed at 4D over the full clamping range •The design seals the coolant from leaking up to 2000 PSI. •Superior surface finish for better fit and TIR •Lot Numbers for lot traceability •Easy to read size markings | Country of Origin | SWITZERLAND |
Shipping Info
Package Weight
0.15
LocalField3
J208
