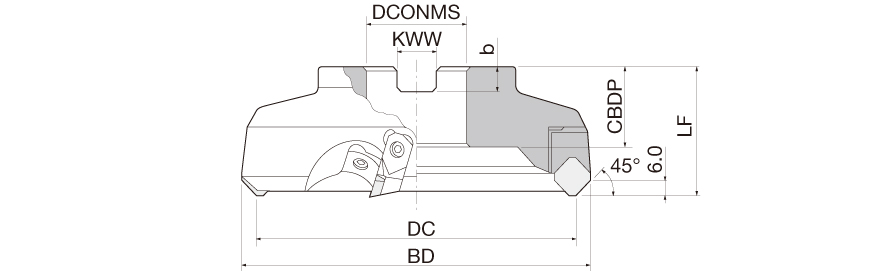

THF5405RIA
Indexable Face Mill; 141 mm Dia. × 38.1 mm Shank Dia. × 2″ OAL × 6 mm LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 141 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 125 mm | Weight of Item (WT) | 3.7 Kg |
| Cutting Diameter Maximum (DCX) | 141 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | | Face Milling | |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2″ | Functional Length (LF) | 63 mm |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 45 Facemills |
| Master Insert Identification (MIID) | SF*N53ZFN* |
Product Features
| Family Description | 45deg wedge type face mill for aluminum machining with large depth of cut | Country of Origin | Japan |
Shipping Info
Package Weight
3
