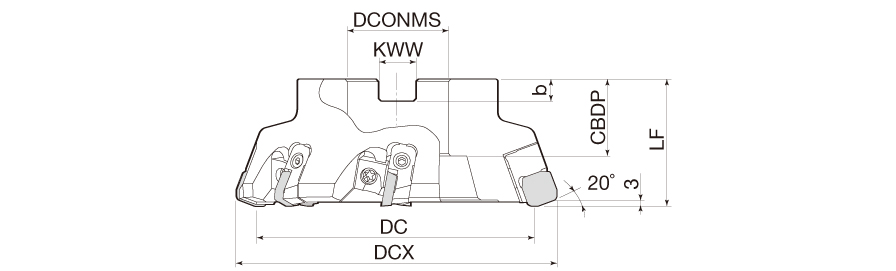

TXD15125R
Indexable Face Mill; 125 mm Dia. × 38.1 mm Shank Dia. × 2″ OAL × 3 mm LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 125 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 106 mm | Weight of Item (WT) | 2.4 Kg |
| Cutting Diameter Maximum (DCX) | 125 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3 mm | Application | | Face Milling | High feed Milling | |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2″ | Functional Length (LF) | 63 mm |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | Fast Feed Face mill |
| Master Insert Identification (MIID) | SDEN1504ZDSR |
Product Features
| Family Description | Highly productive face mill with super high feed | Country of Origin | Japan |
Shipping Info
Package Weight
6.624
