F4080.UB38.102DC.Z07.04

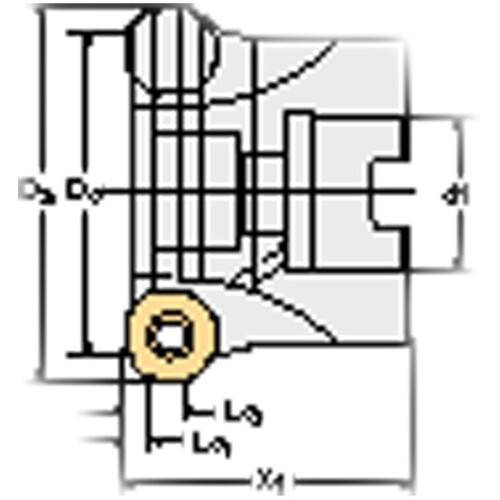

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2-31/64″ OAL × 0.157″ Max Depth ; 7 Inserts ; 43 Degrees ; Series F4080
| Cutting Diameter (DC/DCX) | 4″ | Overall Length (OAL) | 2-31/64″ |
| Cutting Diameter (DC) | 3-61/64″ | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 7 | Tool Cutting Edge Angle (KAPR) | 43 Degrees |
| Depth of Cut Maximum (APMX) | 0.157″ | Series/List # | F4080 |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
5.522
