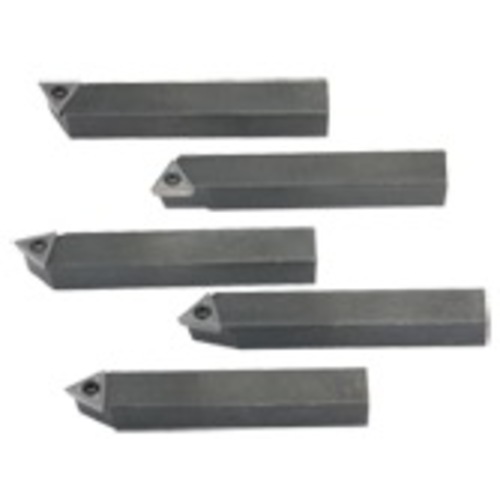

Style 1/2 × 1/2″ SH - LH - Indexable Tool Bit
Turning Toolholder; 3-1/2″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 1/2″ 1/2″ Shank Dia.
| Shank Height (H) | 1/2″ | Inscribed Circle Diameter (IC) | 3/8 |
| Shank Width (B) | 1/2″ | Master Insert Identification (MIID) | TT321 |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Turning Toolholders-Standard |
| Connection Diameter Machine Side (DCONMS) | 1/2″ × 1/2″ | Style | AL8 |
Product Features
| Remarks | •Indexable Carbide Turning Tools & Accessories •All Supplied with C5 Carbide with .015 Radius •EFFICIENCY:A versatile and economical way to replace carbide tipped tool bits. Each tool cuts right, left, or plunges. Positive rake cutting and built-in chip breaker groove. Inserts available with 2 different radii (.015 standard / .032 optional). STYLE AL Left Hand suitable for facing to a square shoulder. | Country of Origin | India |
Shipping Info
Package Length
5.37500
Package Width
1.37500
Package Height
.48800
Package Weight
0.2
LocalField3
B33
