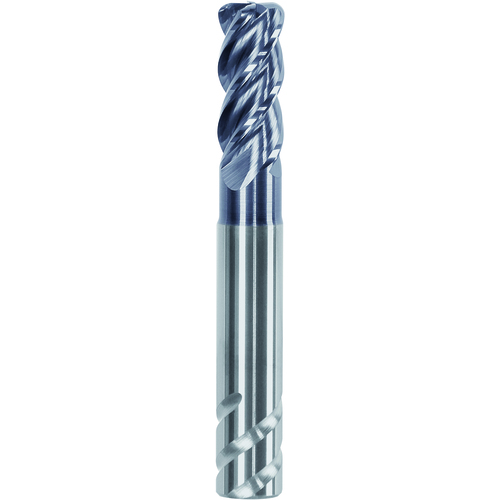

1/8 Dia. - 2 OAL - SC Finisher/Rougher End Mill - 4FL
| Cutting Diameter (DC) | 1/8″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Flute Helix Angle (FHA) | Variable |
| Depth of Cut Maximum (APMX) | 1/4″ | Application | Roughing | Finishing |
| Overall Length (OAL) | 2″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | AlTiN | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
Product Features
| Remarks | •Patented Safe-Lock tool shank eliminates tool pull out •h5 tolerance shank •Fine balanced •Runout < 0.0002″ •Variable Helix for roughing and finishing. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
