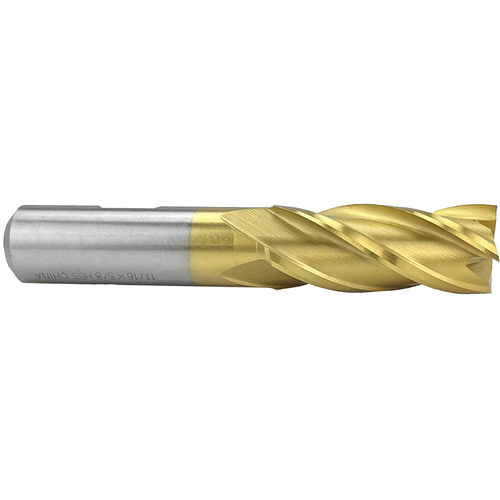

7/8″ Dia-4-1/8″ OAL-TiN HSS-Center Cut SE EM-4 FL
SQ End Mill; 7/8″ Dia. × 1-7/8″ LOC × 3/4″ Shank Dia. × 4-1/8″ OAL ; 4 FL ; HSS ; TiN
| Cutting Diameter (DC) | 7/8″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 1-7/8″ |
| Depth of Cut Maximum (APMX) | 1-7/8″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 4-1/8″ | Length Group | Standard |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.875″ |
| Coating | TiN |
Product Features
| Remarks | •TiN Coated 4-Flute Single End Regular Length •High Speed Steel •TiN coating increases surface hardness and protects the tool from abrasive wear to increase tool life •Facilitates chip flow, resists galling and reduces heat-generated in the metal removal process •Allows for elevated feeds and speeds to increase your productivity | Country of Origin | China |
Shipping Info
Package Length
4.30000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.5
LocalField3
A239
