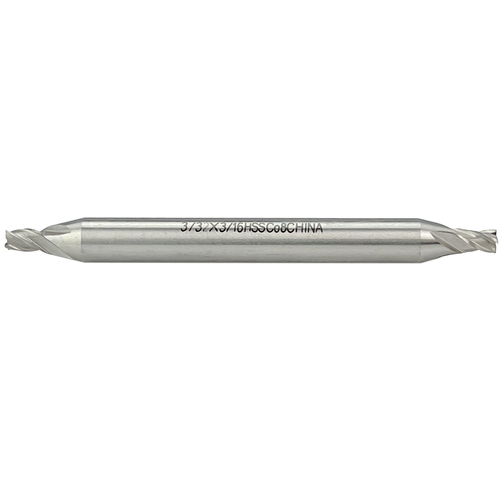

3/32″ Dia-2″ OAL-M42-Center Cut-DE Mini EM-4 FL
SQ End Mill; 3/32″ Dia. × 9/64″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 3/32″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Usable Length (LU) | 9/64″ |
| Depth of Cut Maximum (APMX) | 9/64″ | Tool Type | Double-End|Center Cut |
| Overall Length (OAL) | 2″ | Length Group | Miniature |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.09375″ |
| Coating | Uncoated |
Product Features
| Remarks | •4-Flute Stub Length Double End M–42 8% Cobalt Miniature End Mills •3/16 Shank • Center Cutting •M–42 8% Cobalt is ideal for the tougher cutting assignments on hi-strength, hi-temp steels and exotic materials or extended production runs in conventional and N/C milling operations. | Country of Origin | China |
Shipping Info
Package Weight
0.196
LocalField3
231
