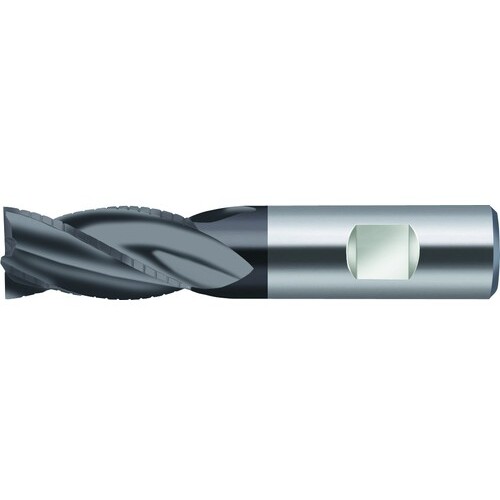

10mm Dia. × 22mm LOC 4 Flute Carbide AcN 30° Helix
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; AlCrN
| Cutting Diameter (DC) | 10 mm | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Depth of Cut Maximum (APMX) | 22 mm | Shank Type | Weldon |
| Overall Length (OAL) | 72 mm | Usable Length (LU) | 22 mm |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlCrN | Decimal Equivalent | 0.3937″ |
Product Features
| Family Description | H3183017–10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.172
