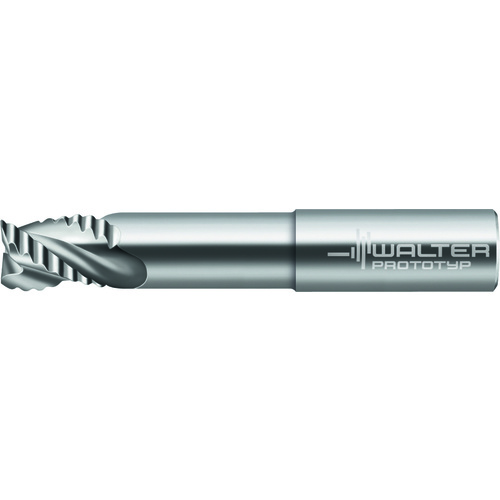

16mm Dia. × 20mm OAL 3 Flute Carbide 40° Helix Rou
SQ End Mill; 16 mm Dia. × 20 mm LOC × 16 mm Shank Dia. × 115 mm OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | CW|40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 20 mm | Usable Length (LU) | 63 mm |
| Overall Length (OAL) | 115 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Flute Type | For Aluminum |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.6299″ |
Product Features
| Family Description | H608771–16 | Country of Origin | Germany |
Shipping Info
Package Weight
0.658
