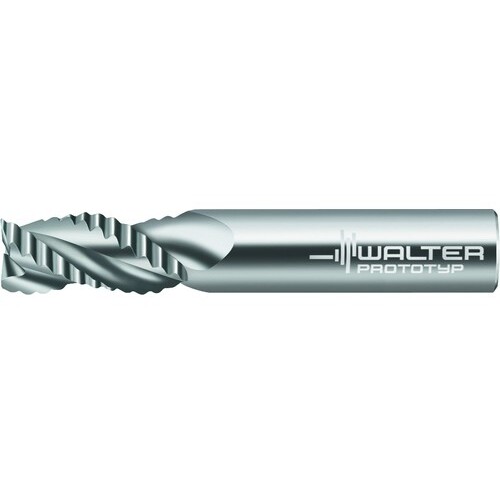

10mm Dia. × 22mm OAL 3 Flute Carbide 40° Helix Rou
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 10 mm | Flute Helix Angle (FHA) | CW|40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 22 mm | Usable Length (LU) | 22 mm |
| Overall Length (OAL) | 72 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Flute Type | For Aluminum |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.3937″ |
Product Features
| Family Description | H608411–10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.161
