16mm Dia. × 32mm LOC 4 Flute Carbide TAX 1mm CR No

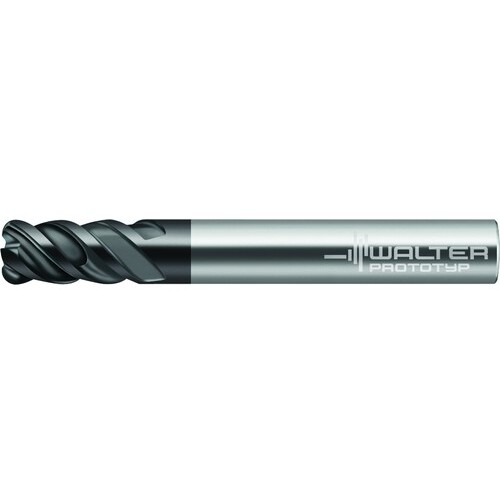

SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 1 mm RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | CW|50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 32 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 92 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting |
| Coating | AlTiN | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | H3070318–16–1 | Country of Origin | Germany |
Shipping Info
Package Weight
0.553
