ST-646-24-T 0.75-IN DIA 6

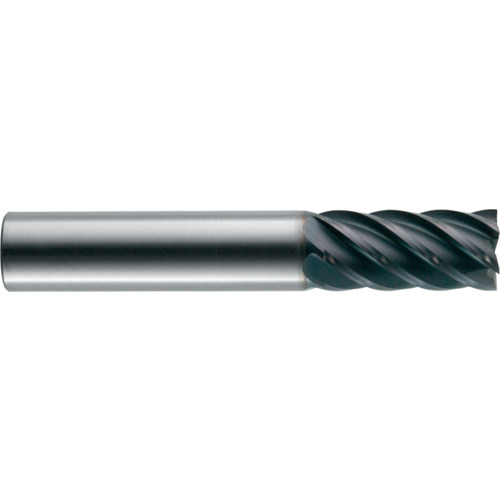

Corner Radius End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 6 FL ; TiN ; Series ST-646
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Chamfer Width (CHW) | 0.011″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | Decimal Equivalent | 0.75″ |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Series/List # | ST-646 |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Country of Origin | USA |
