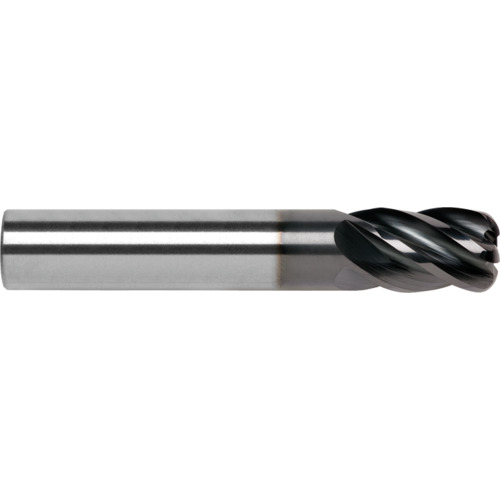

MXG-502-12-FL 12MM DIA 5-
Corner Radius End Mill; 12 mm Dia. × 25 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 5 FL ; AlTiN ; Series MXG-502
| Cutting Diameter (DC) | 12 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 25 mm | Corner Radius (RE) | 0.65 mm |
| Overall Length (OAL) | 83 mm | Tool Type | Solid Carbide Endmill |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | MXG-502 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
