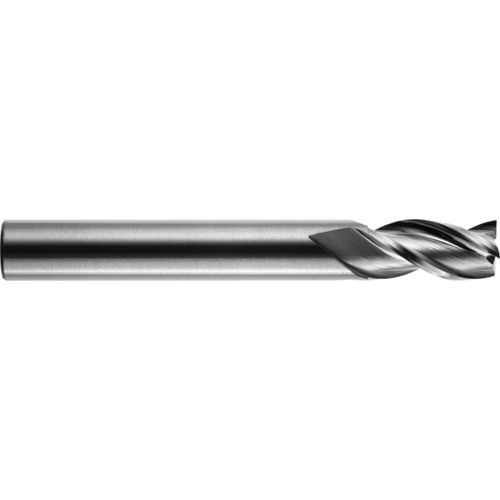

A1-303-16 0.5-IN DIA 3-FL
SQ End Mill; 1/2″ Dia. × 1-1/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 3 FL ; Uncoated ; Series A1-303
| Cutting Diameter (DC) | 1/2″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Chamfer Width (CHW) | 0.01″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.5″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | A1-303 |
| Flute Helix Angle (FHA) | 35 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.999
