FM-305-20-030 0.625-IN DI

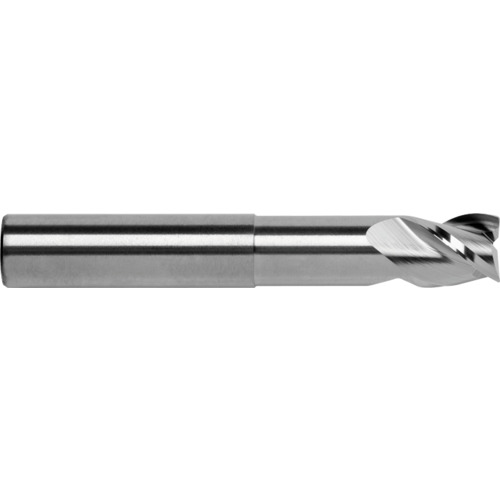

Corner Radius End Mill; 5/8″ Dia. × 5/8″ LOC × 5/8″ Shank Dia. × 6″ OAL ; 3 FL ; Uncoated ; Series FM-305
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 3-1/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | FM-305 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
