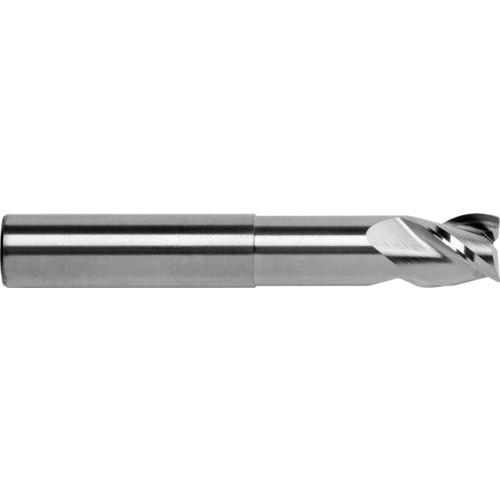

FM-301-08-060 0.25-IN DIA
Corner Radius End Mill; 1/4″ Dia. × 1/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 3 FL ; Uncoated ; Series FM-301
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 3″ | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | FM-301 |
Product Features
| Country of Origin | USA |
