C1-301-20 0.625-IN DIA 3-

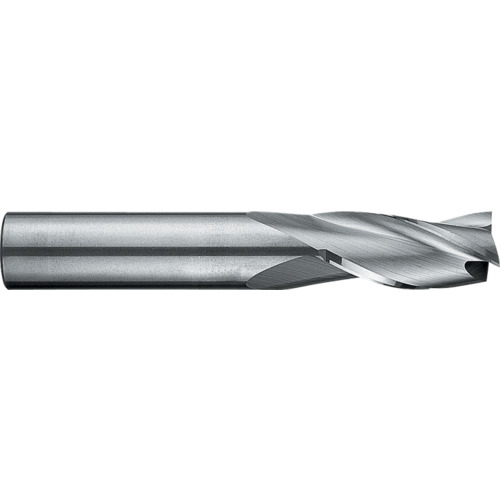

Square End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 3 FL ; Uncoated ; Series C1-301
| Cutting Diameter (DC) | 5/8″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3-1/2″ | Decimal Equivalent | 0.625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | C1-301 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
