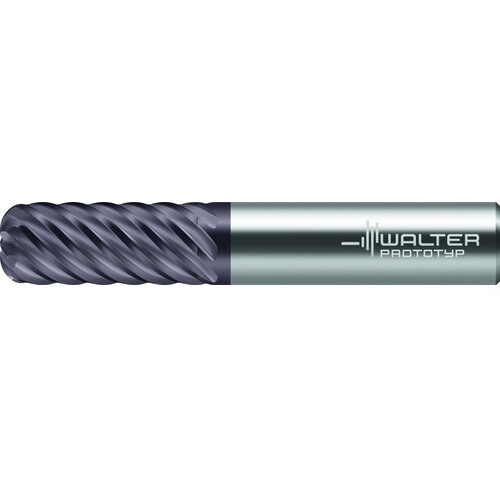

7872820 ADVANCE LINE, MC1
SQ End Mill; 3/4″ Dia. × 1-3/4″ LOC × 3/4″ Shank Dia. × 4-1/2″ OAL ; 8 FL ; Carbide ; TiAlN ; Series MC128
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Grade | WJ30TF |
| Overall Length (OAL) | 4-1/2″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 8 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 50 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | MC128 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 1/8″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.999
